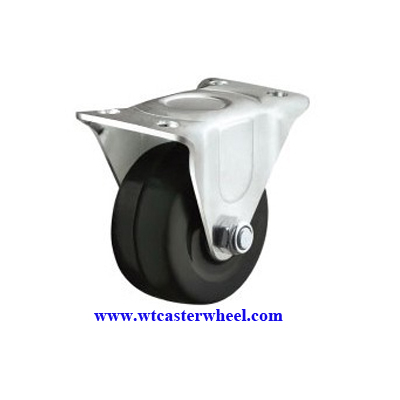

Light duty fat boy caster
Light duty fat boy caster Light duty fat boy caster
Product name : Light duty fat boy caster
Item : 01AR65WPP
Details :
  • Item : 01ARWPP
  • Wheel diameter :38mm, 50mm,65mm,75mm
  • Wheel materials : White PP or black rubber
  • Fittings :Rigid,swivel,swivel W/side brake
  • Wheel bearings : bush bearing.
  • Load capacity : 30kg,40kg,50kg,60kgs
  •  Housing: Made of pressed steel, double ball race
  • Plated: Zinc,Chrome,black lacquer

Function Wheel Material Item No. Wheel Diameter Tire Width Plate Size Hole Size Installation High Capacity (KGS)
Rigid WPP 01AR40WPP 38 24 62 X 44 48x23 52 30
01AR50WPP 50 24 65 X 48 54x24 63 40
01AR65WPP 65 31 96 X 67 76x57 78 50
01AR75WPP 75 36.5 105X 47 85x58 92 60


Widely used as bookshelf caster wheel,toolbox caster wheel,cabinet caster wheel,display shelf caster wheel.
